Maifeng Precision Team
A charging dock back cover is easy to overlook. Once the product is assembled, most users will never see the ribs, bosses and clips on the inside. On the production line, however, those details determine whether the housing locates correctly, closes cleanly and stays consistent from one batch to the next.

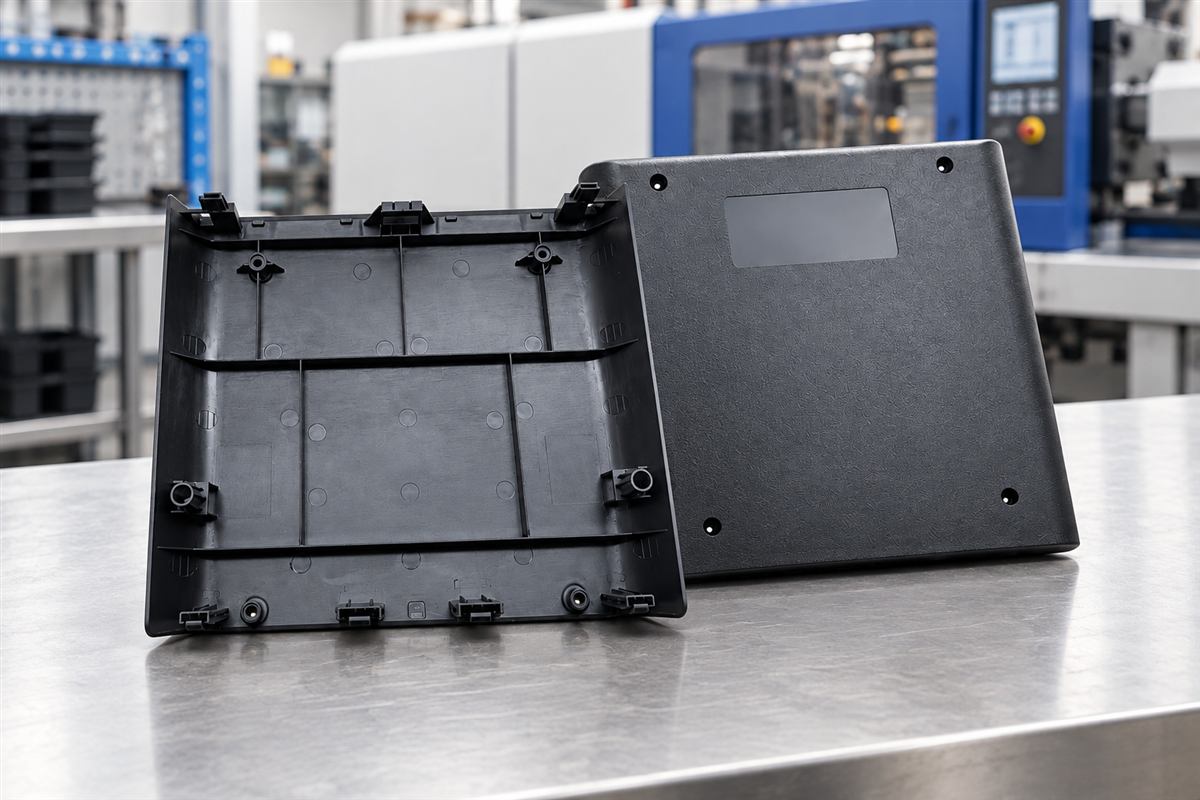

This PP charging dock back cover is one example of the custom plastic parts produced by Kunshan Maifeng Precision Industrial Co., Ltd. The component is made by injection molding and combines the outer cover, internal reinforcement and assembly features in one part.
Polypropylene, commonly known as PP, is a practical material for many electronic accessory housings. It is lightweight, tough and suitable for repeatable injection molding. It also gives designers enough flexibility to integrate ribs, clips and mounting features without turning the cover into a collection of separate pieces.
Material selection still depends on the actual product. Load, temperature, appearance, wall thickness and assembly method all need to be considered. For this charging dock back cover, PP provides a useful balance between structural performance, moldability and production cost.

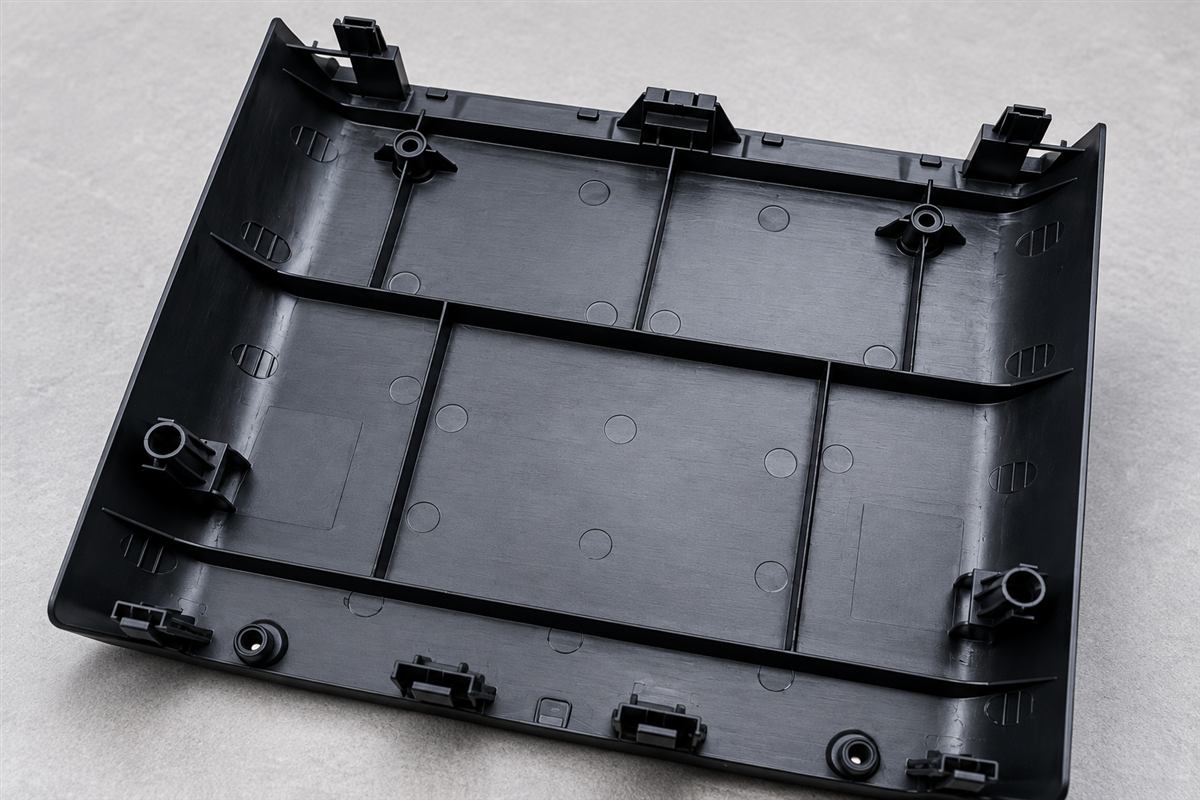

The inside of the cover carries most of the functional design. Reinforcing ribs help the broad plastic surface resist flexing. Mounting bosses provide defined connection points. Positioning features guide the part into place, while the clips secure it to the matching housing.
These features cannot be treated separately. A clip that is too stiff may be difficult to assemble. A boss with an unsuitable wall section may leave a sink mark on the opposite surface. Ribs that are too heavy can introduce uneven shrinkage, while weak ribs may not provide enough support. Before mold manufacturing, our team reviews these relationships together with the customer drawings or 3D data.

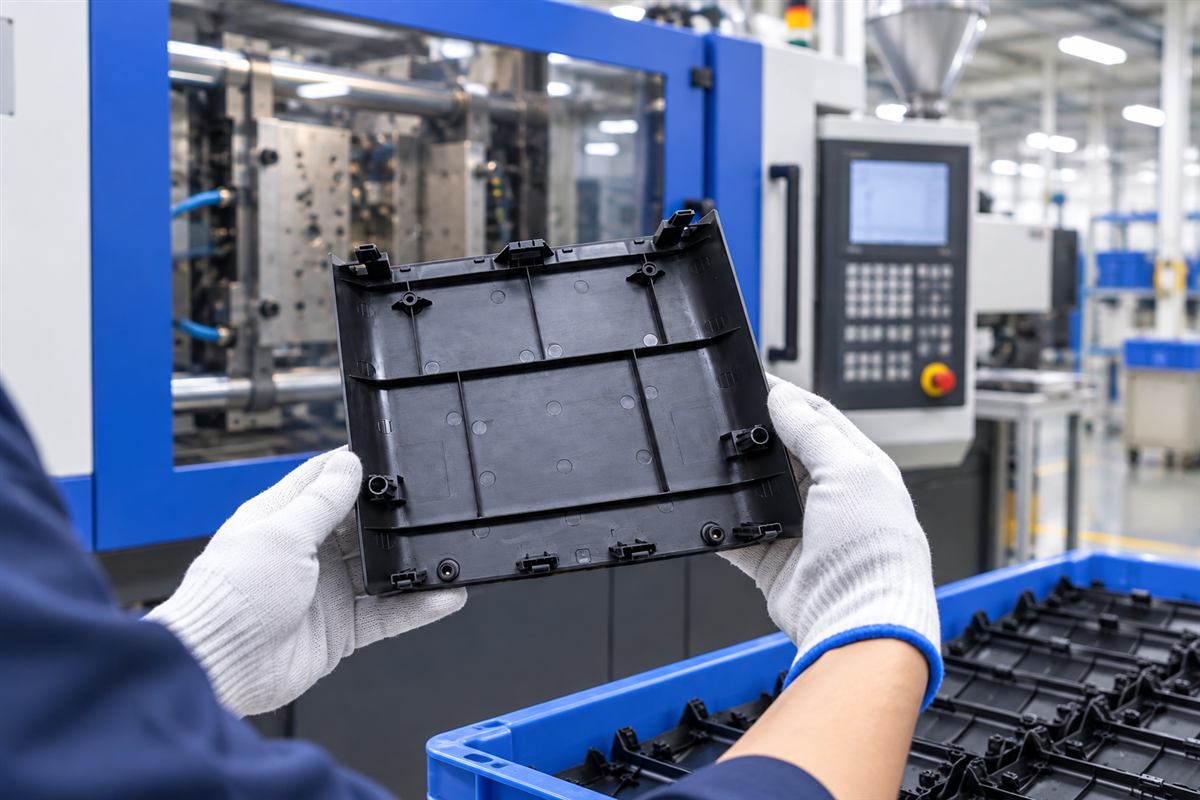

Stable production starts with the mold. Gate position, parting line, cooling layout and ejection method all affect the finished cover. The mold also needs to reproduce the smaller assembly features without damaging them during release.
During trial molding, the team checks filling behavior, appearance and key dimensions, then adjusts the process where necessary. The aim is straightforward: produce a back cover that fits the mating components consistently, without flash, short shots, obvious sink marks or unacceptable deformation.
Once the process is stable, the same controls carry over into batch production. This is especially important for covers with several clips and positioning points, because a small dimensional change in one area can show up later as a gap or assembly problem.

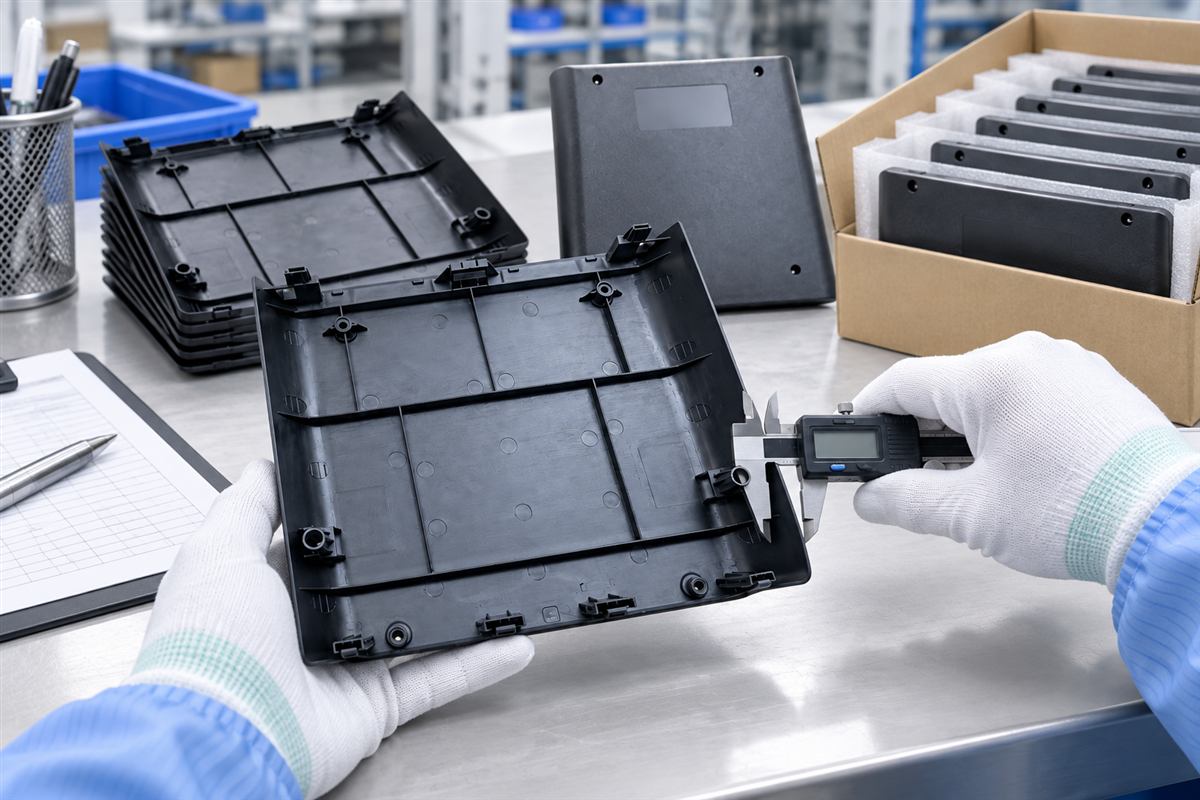

Inspection is not limited to checking whether the part looks clean. For a charging dock back cover, the team pays attention to the condition of clips, bosses, ribs and locating features, as well as visible surface quality and deformation. Where assembly requirements are provided, the relevant dimensions and fit can also be checked against the customer standard.
Qualified parts are packed to reduce rubbing, scratching and deformation during storage and transport. Packaging is selected with the part shape and delivery method in mind rather than treated as an afterthought.
Maifeng Precision supports custom plastic projects from mold development through injection molding, inspection and packing. Customers can send 3D files, 2D drawings or physical samples for an initial review. If the product is still being developed, we can discuss practical molding points such as draft, wall thickness, rib layout, clip structure and material choice before tooling begins.
Besides PP, our molding work can involve PE, ABS, PC, PA, POM, TPE, TPU, PC+ABS and other thermoplastics, depending on the product requirements. Color, surface finish, expected quantity and assembly conditions should be confirmed for each project.
If you are developing a charging dock housing or another custom injection molded plastic component, send us the drawing, 3D model or sample. Our team will review the structure and discuss a practical tooling and production approach for your project.
Email: Lucie-MF@mold-std.com
WhatsApp / WeChat: +86 17714886855

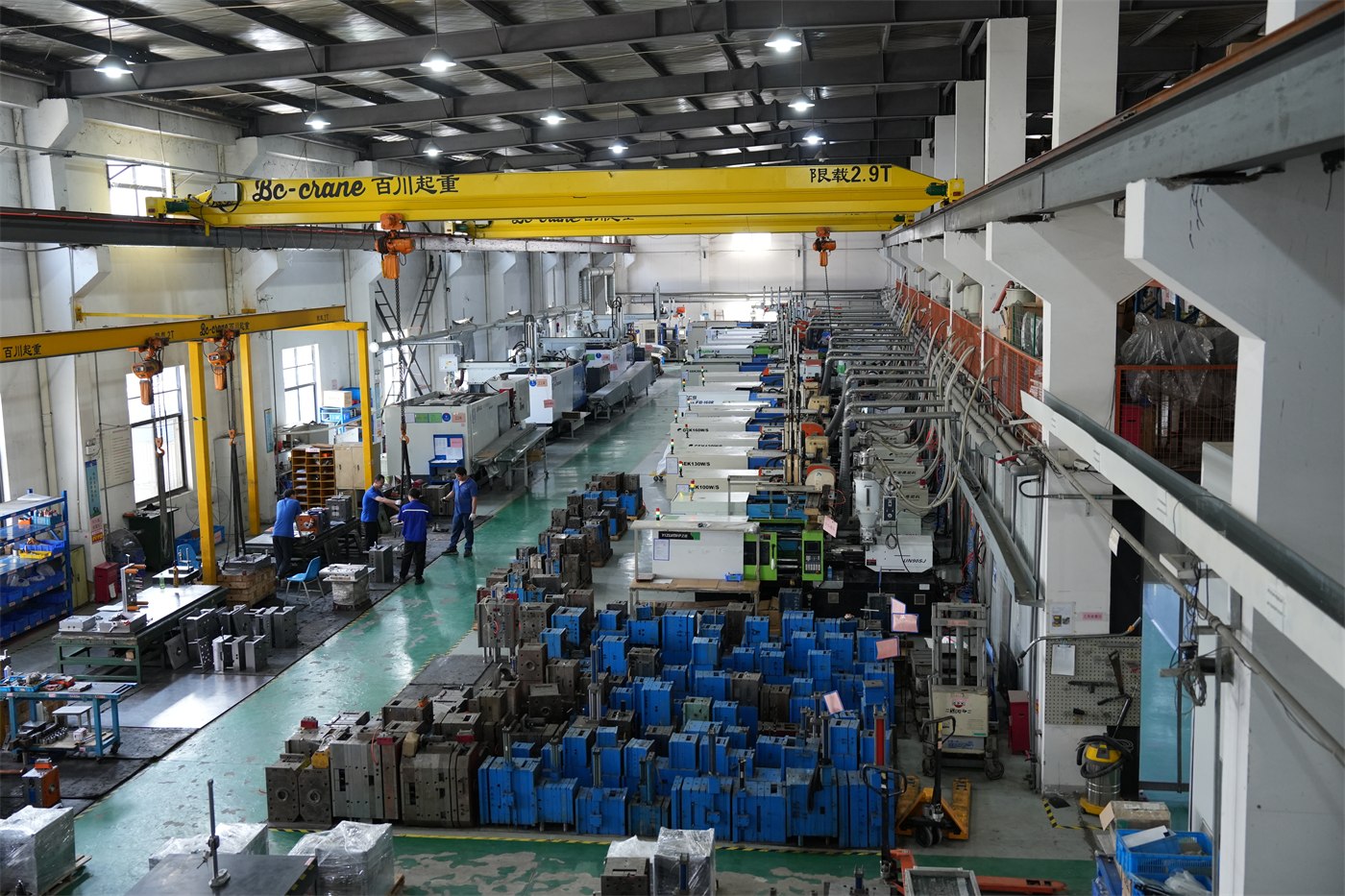

Kunshan Maifeng Precision Industry Co., Ltd. (MIF), with an investment of RMB 35 million, operates an independent factory covering more than 5,000 m². Our production resources include 36 single- and dual-color injection molding machines with clamping forces from 90 to 700 tons, more than 50 sets of mold manufacturing and processing equipment, and a service, management and production team of over 100 people.
We specialize in product design, mold manufacturing, injection molding and product assembly for a wide range of plastic parts. Our parent company was established in 2008, giving our team more than 16 years of practical manufacturing experience. We provide customized services for small and medium-sized customers in domestic and international markets.
1. Product Design
We can conduct product structure design and optimization based on the drawings and samples provided by customers.
2. Mold Design
Based on customer requirements, we select an appropriate mold design scheme for the product and production plan.
3. Mold Manufacturing
We provide one-stop mold processing, including machining, polishing, assembly and other manufacturing processes.
4. Injection Molding
Our single- and dual-color injection molding machines support different product structures and order requirements.
5. Product Assembly
Product assembly and supporting production services are available according to project requirements.
