Auto Plastic Pipe Connector, Precision Injection Molding Part for Vehicle

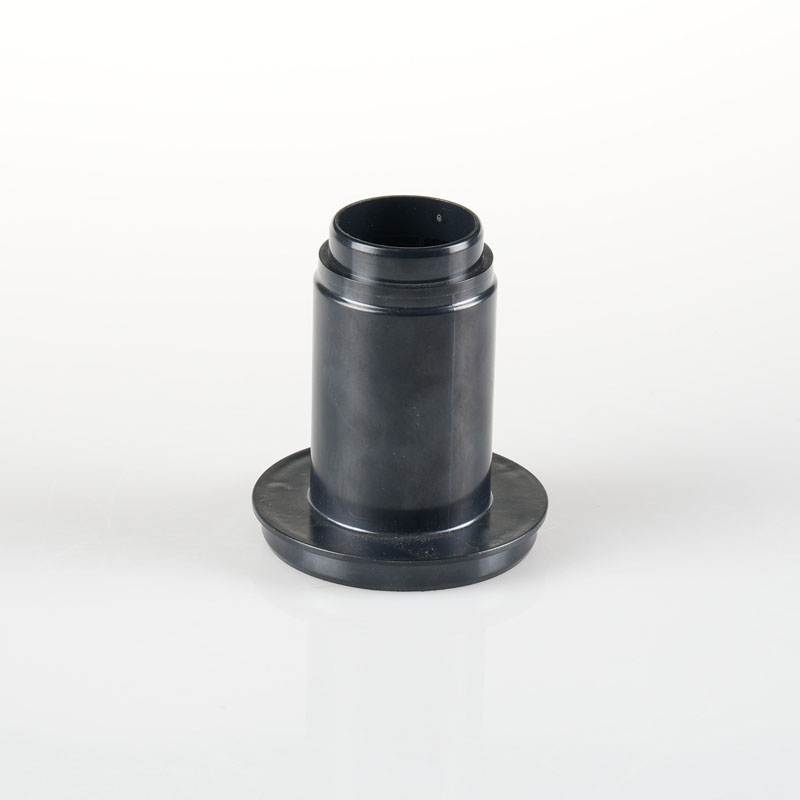

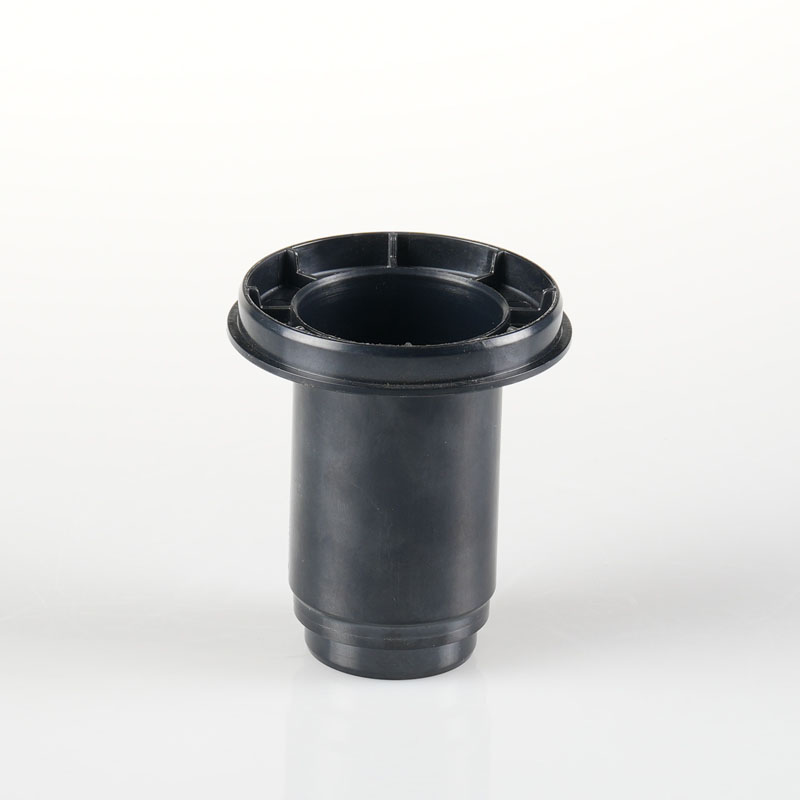

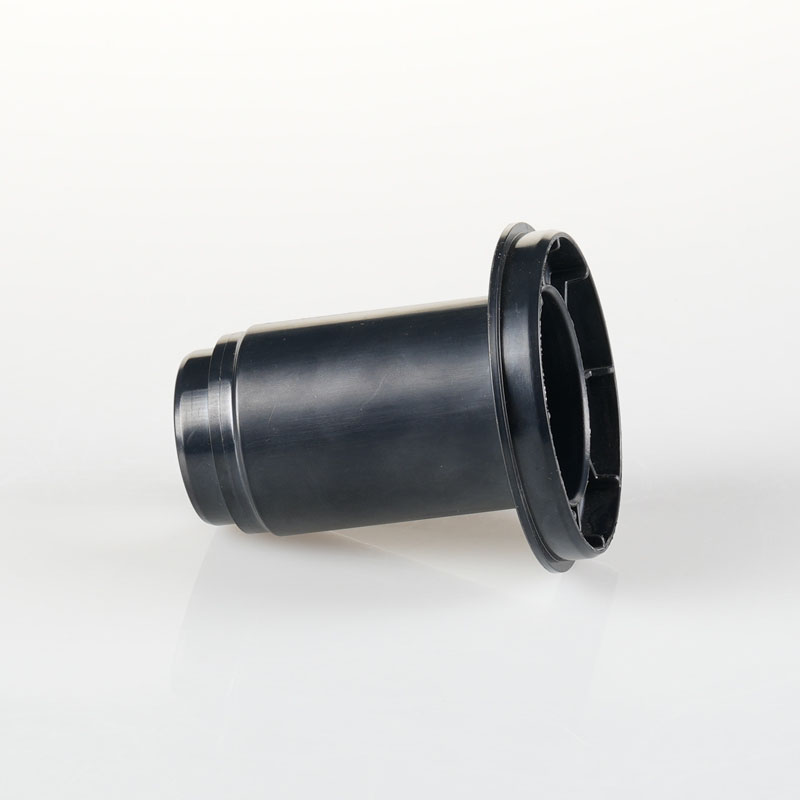

This black fitting is a pipe connector for vehicle plumbing — coolant, washer or breather lines, depending on the variant. The barrel steps down through three diameters, each step a seat for a hose or a mating socket; the wide flange at the base bolts the fitting to a panel or tank wall; and the inner lip carries the sealing beads that hold the hose under clamp pressure. One molding, no secondary machining.

The part is precision injection molded in a black automotive-grade resin. This page covers the stepped seal concept, the flange, the tolerances that matter, and what to confirm before quoting.

Why the Barrel Steps

Each step on the barrel is doing a different job, and the diameters are not decorative. The widest step is the push-in seat for the mating socket — its diameter sets the interference, and the interference sets both the pull-out force and the seal. The middle step carries the second hose clamp if the variant uses one, and the narrow spigot pilots into the panel hole so the flange lands square. When a customer sends one drawing for “a pipe with a flange”, the useful conversation is about each step separately, because each one is a separate fit.

The surface finish on the sealing steps is held smooth on purpose. A slick, uniform surface lets the O-ring or hose slide during assembly without shaving, and it gives the clamp a predictable seating torque.

The Flange Does the Alignment

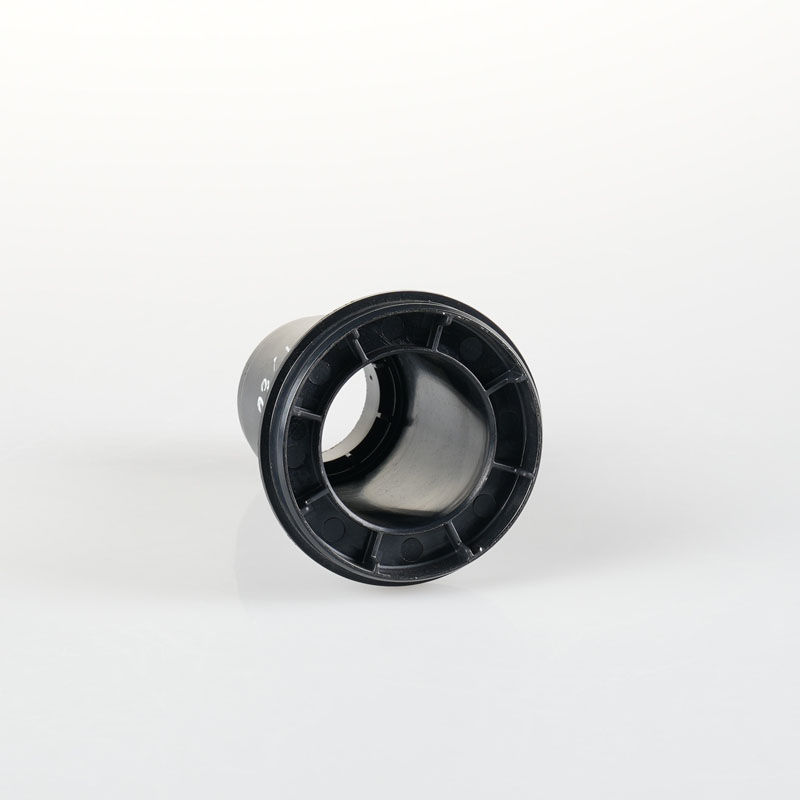

The flange is more than a bolt face. Its outer edge carries notches that key into the panel cutout, so the fitting cannot rotate when a hose is twisted on — a rotated fitting drags its hose out of alignment and works the joint loose over time. The bolt lands are reinforced from underneath by short ribs, short enough that they never read through the flat top face where the seal sits.

Flatness across the flange is the tolerance we watch in sampling. A flange that rocks on the panel closes unevenly, and the leak shows up not at the hose but at the gasket face — the symptom that sends people looking in the wrong place.

Resin and Temperature Reality

The resin is a black polyamide for the higher-temperature variants — engine-bay coolant work — with glass reinforcement where the flange sees bolt load, and a simpler PP or ABS grade where the fitting serves a washer or breather line away from heat. The honest trade is stiffness against seal relax: glass helps the flange stay flat but gives the barrel less creep room to hold a clamp tight, so the reinforcement decision is made per fitting, not per material chart.

Dimensional stability is checked after conditioning, not off the machine. Nylon moves as it takes on moisture, and a bore measured dry will read tight weeks later in service — so the first-article report states the conditioning the numbers were taken at.

Information to Confirm Before Starting a Pipe Connector Project

• Each barrel step’s mating part — hose, socket or panel hole — with its tolerance.
• Media and temperature: coolant, washer fluid or air, and the zone of the car it lives in.
• Flange fixing: bolt pattern, panel thickness and the anti-rotation notch positions.
• Resin preference, or the certification the part must meet.
• Annual volume and color, since tooling is cut for one geometry per cavity set.

Kunshan Maifeng Precision Industry Co., Ltd. molds automotive pipe connectors and similar precision fittings in house, with tooling built on site and first articles reported with conditioning stated. Send us the mating-part drawings, and we will come back with a resin recommendation and a tooling quotation.
