Integrated Carry Handle Bottle Lid, Flip Sip Water Bottle Accessory

An integrated-loop flip lid is one moulded part doing three jobs: it threads down and seals, it flips open for drinking, and it carries the bottle by its loop. Integrating all three is what makes the lid worth moulding, and it is also what concentrates every stress into one piece of steel design. The lid shown here is a flip-sip replacement cap with the carry loop moulded into the body, no pins, no welds, no assembly.

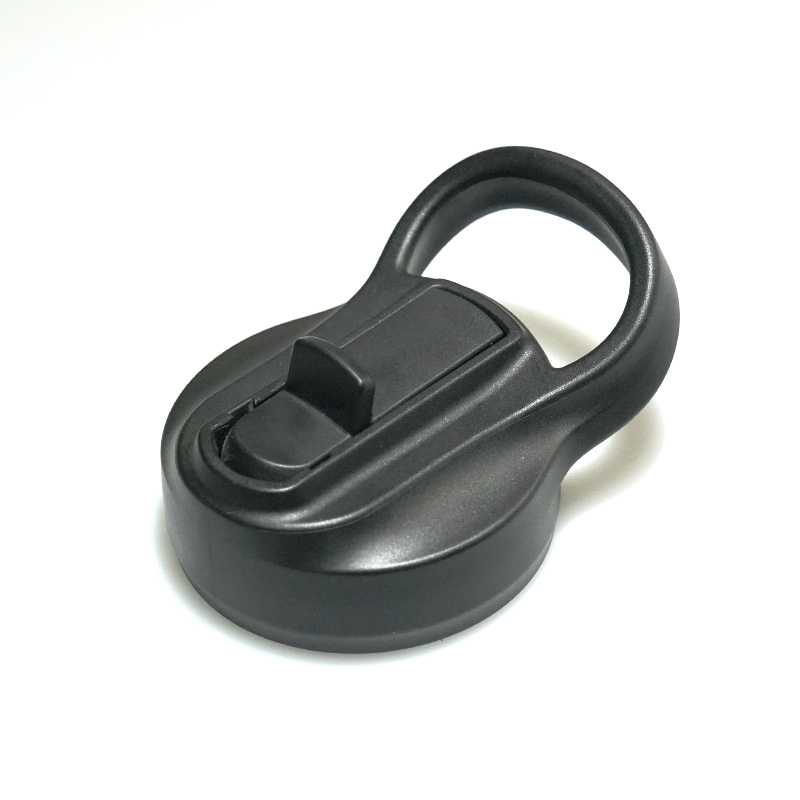

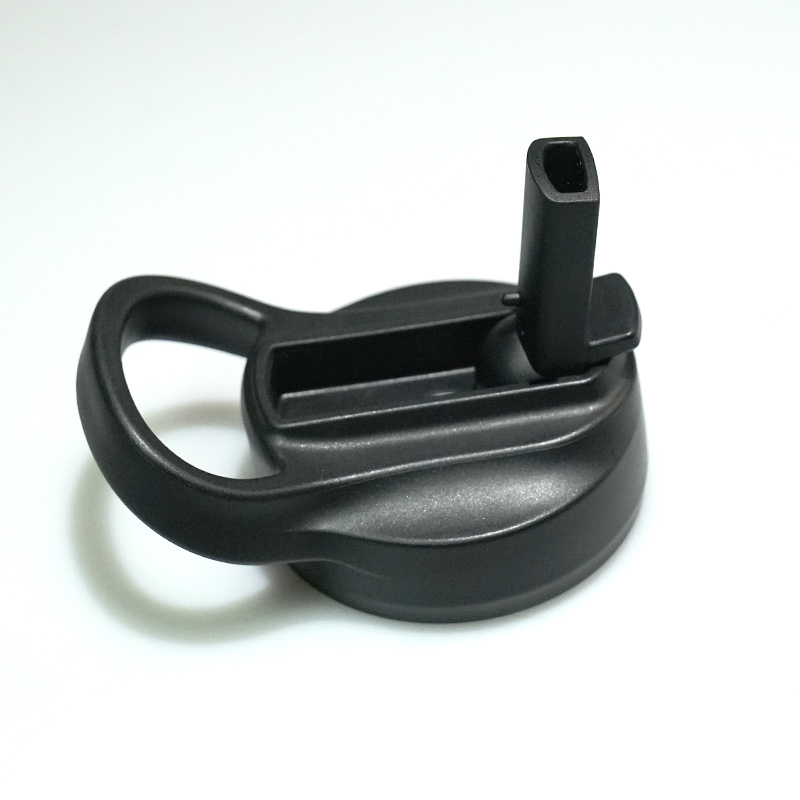

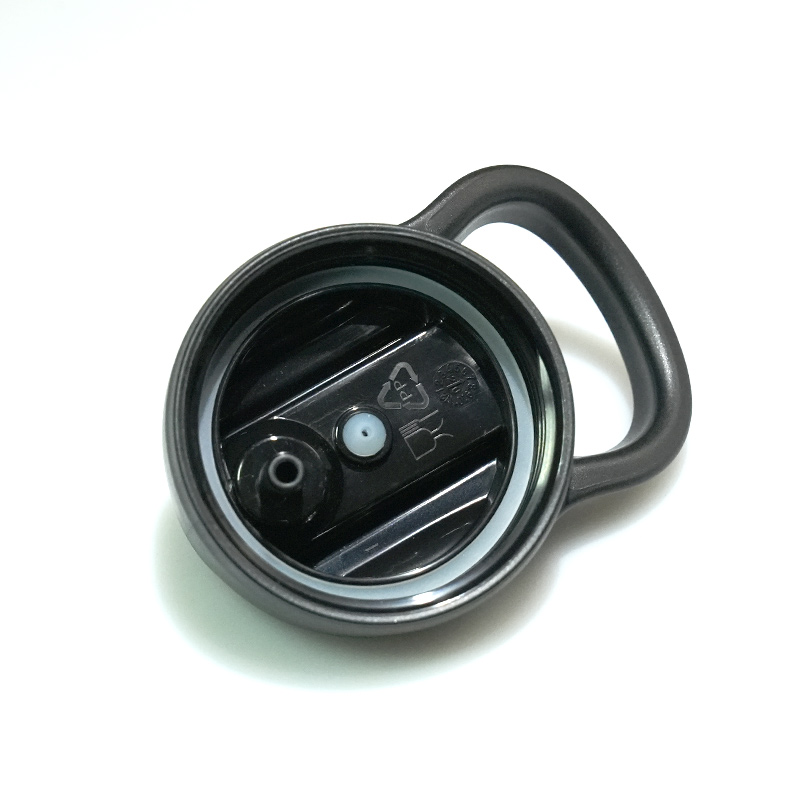

The four views show it open, closed, from the inside and in profile. The inside view is the one that explains the sealing, and the profile shows where the loop root lands, which is where this design either works or fails.

The Loop Root Is the Whole Design

Everything the loop carries passes through its two roots, where it meets the lid body. A root that is too thin flexes pleasantly and fatigues in months; one that is too thick makes the loop immovable. The root section is profiled so the stress spreads along the junction rather than concentrating at the corners, and the material choice leans on a resin with enough give that thousands of hang-and-swing cycles do not whiten the surface.

Gate position is read against the root. The moulding must pack fully into the root region, last place to fill and the place that decides the part, so the gate layout feeds it deliberately instead of letting the flow find its own way.

Flip Sip With a Proper Seal Behind It

The flip cover opens the sip channel for drinking and closes over it for carrying, but the leakproof claim rests on what sits underneath: a moulded plug that seats into the sip bore with a soft sealing element. The cover’s job is access; the plug’s job is the seal. Splitting the duty this way lets the cover be thin and quick to open while the plug carries the actual sealing work against both weeping and the pressure a hot drink builds.

The closed cover seats into a moulded recess and stops flush, so nothing catches on the inside of a bag. The recess edge also acts as the cover’s outer stop, which keeps the hinge from being over-flexed backwards by a thumb in a hurry.

Threaded Base, Built to the Bottle

The thread stack around the skirt compresses the base seal against the bottle mouth, and its form comes from the bottle drawing rather than from a generic standard. Thread depth, flank angle and the seal seat above it are gauged with the actual mating mouth, because a replacement lid lives or dies by that fit and by nothing else.

What Gets Checked Before Shipping

Loop strength and cycle life, hung with a load well above a full bottle and cycled past the rating. Hinge life and cover retention, open and closed on a fixture. Leakproof performance with the lid torqued on, hot water, laid on its side. Thread torque window against the actual bottle mouth.

Information to Confirm Before Starting an Integrated-Loop Lid Project

• The bottle mouth drawing, since thread and seal seat are built to it.
• Loop load requirement and how the bottle is actually carried, by hand, over a shoulder or clipped.
• Drink type and temperature range, which load the plug seal and the vent.
• Resin and colour specification, including food-contact requirements for the destination market.
• Annual volume, which decides the cavity count and the root-packing process controls.

Kunshan Maifeng Precision Industry Co., Ltd. reviews drinkware closure designs before quoting, builds the injection molds in house, and molds single-color and dual-color parts on 36 machines from 90 to 700 tons. Send us the bottle mouth drawing and the carry requirement, and we will come back with a feasibility comment and a tooling proposal.
