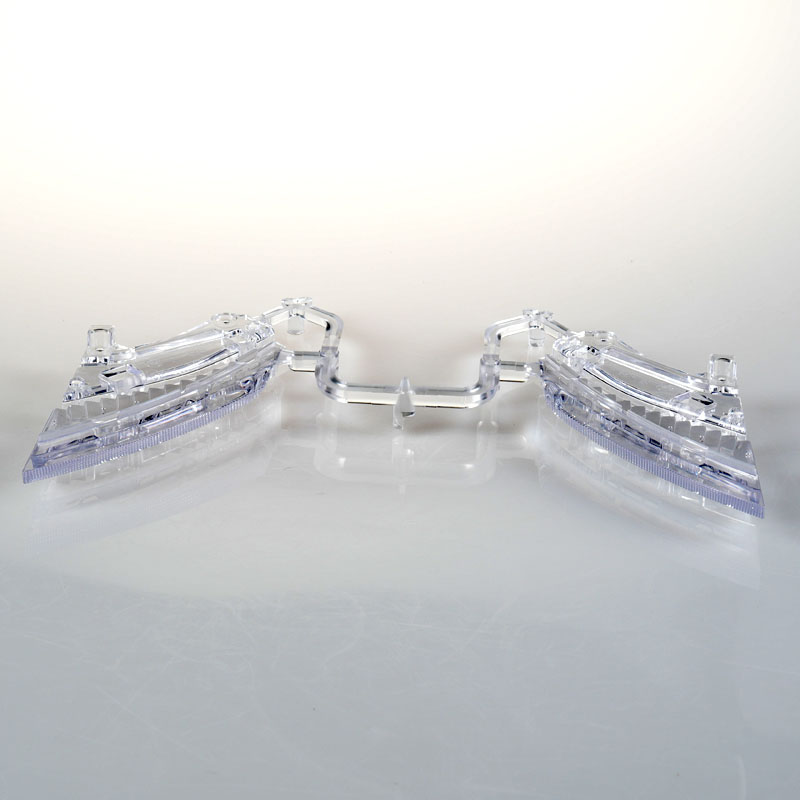

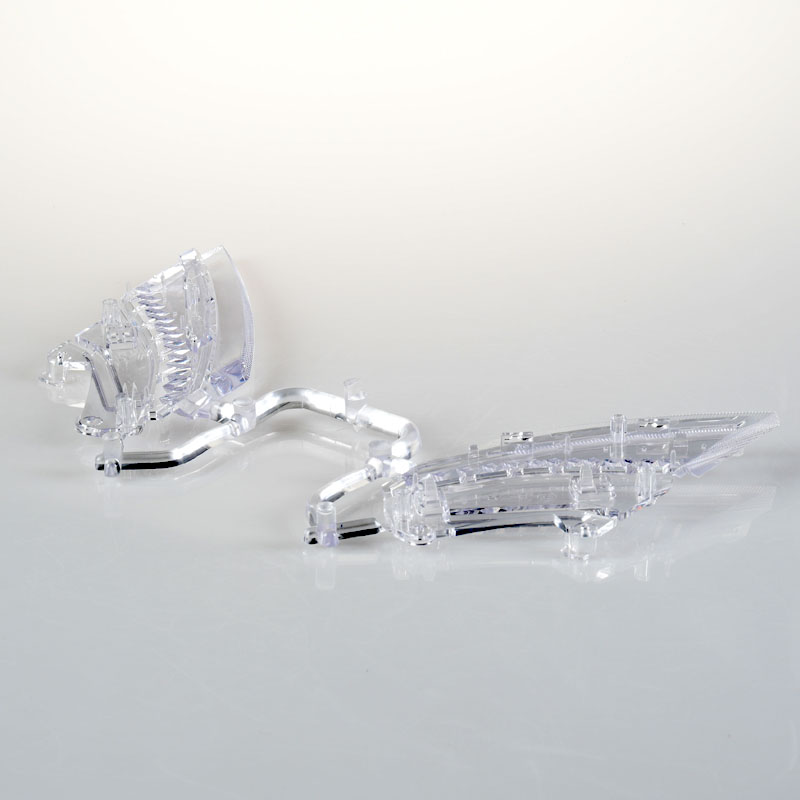

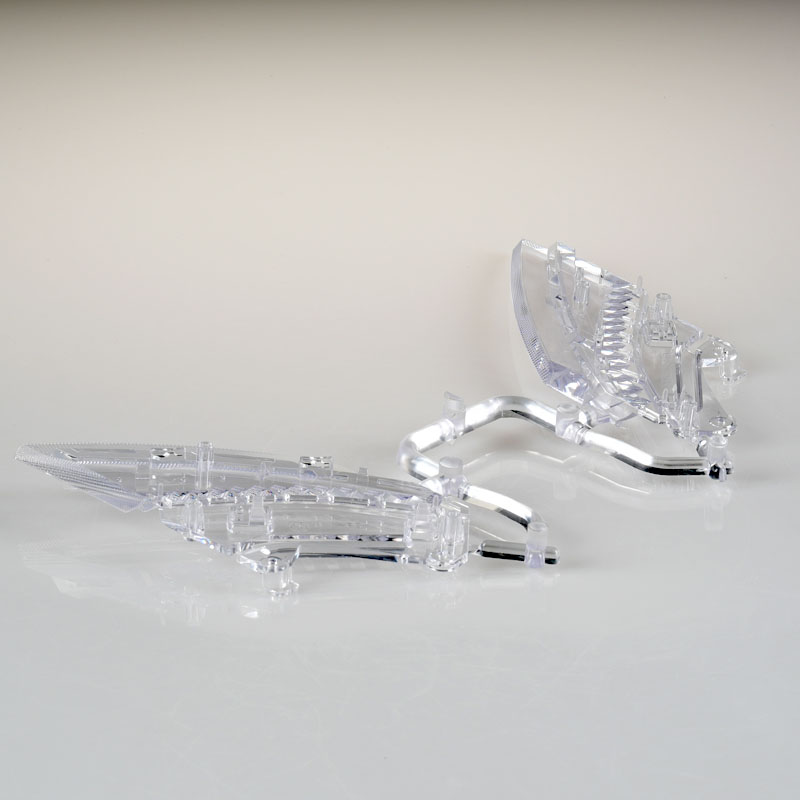

A taillight light guide has one job: take the light from an LED at one end and spread it along a blade long enough to be seen from behind the car. The part shown here does that with two lens-shaped guides linked by a curved transparent arm. Nothing on it is painted, plated or printed. It is molded clear from start to finish, and the only reason it works is that the resin, the surface texture and the wall thickness are all held under control.
Both blades and the connecting arm come out of the same tool in a single shot. The positioning posts and clip features are molded in place as well, so the assembly drops straight into the lamp housing without a secondary operation. What follows covers the resin choice, the ribbed surface that does the light spreading, the tooling problems specific to long thin clear parts, and what gets checked before the parts are packed.
PMMA and optical-grade PC are the two usual candidates. PMMA transmits roughly 92 percent of visible light and holds up better against long-term UV exposure, which matters for a part mounted on the rear of a vehicle. PC is tougher and shrugs off impact and rough handling during assembly, but it yellows sooner unless a UV stabilizer is compounded in. Which one gets used comes down to where the lamp sits, how the guide is clipped in, and whether the customer carries a weathering specification.
Clarity is not the only property under scrutiny. Flow marks, black specks and moisture streaks that would never be noticed in a black housing part are all visible in a clear one. The resin has to be dried to spec before molding, and the regrind ratio is kept low or zero, because a small amount of contaminated regrind shows up in a lamp part long before it would show up anywhere else.
An LED is a point source. If the guide were a plain clear bar, the end nearest the LED would glow hard and the far end would fade out. The faceted ribs molded into the blade surface break that gradient up: each facet picks up part of the travelling light and redirects it out through the blade, so the brightness the driver behind sees is spread along the length instead of piling up at one spot.
That puts rib geometry and wall thickness on the same drawing, and they have to be read together. Where the wall runs thicker, light travels further before it escapes, so that zone reads brighter. Uniform wall across the blade is what keeps the lit appearance even. It is also why a thickness variation of only a few percent is worth arguing about on this kind of part, when the same variation on a housing would be ignored.
The blades are long relative to their thickness, which is the classic recipe for filling trouble and warpage. The gate sits at the far end of the flow path so the melt travels the full length and packing pressure reaches the whole blade. Gating from the middle would put a weld line somewhere in the visible area, and in a clear part a weld line lights up as a dark band the moment the lamp is switched on.
The optical faces are polished to a mirror finish, because any mark left in the steel is reproduced on the part and reads as a streak when lit. Venting has to run along the thin ribs and around the curved arm, or the last region to fill traps air and shorts out. Shrinkage and warpage get the usual treatment for a long flat part: balanced cooling, even packing, and enough cooling time for the arm and the post features to set properly before ejection.
The round posts and clip features at the ends are not trim. They hold the guide a fixed distance from the LED, and that distance decides how much light actually couples into the blade. A guide sitting half a millimetre off its seat reads dimmer or patchier than the one beside it, and on a pair of taillights the difference is obvious at a glance.
Because the posts are molded in the same shot as the optical surfaces, their positions come out of the same tool and repeat shot after shot. That is easier to live with than a part that has to be nudged into position by hand at final assembly, especially once volumes climb past a few thousand sets.
Dimensional report on the post and clip positions, plus a profile check along the blade. Transmission and haze measured on a sample from the lot. A lit check, where the guide is fitted to an LED and photographed, which is the only reliable way to catch flow marks, weld lines and thickness problems that a calliper will never find. Where the customer specification calls for it, a UV or weathering exposure test is added on top.
Kunshan Maifeng Precision Industry Co., Ltd. reviews light guide and lamp part designs before quoting, builds the injection molds in house, and molds single-color and dual-color parts on 36 machines from 90 to 700 tons. Send us the housing drawing, the LED position and the resin specification, and we will come back with a molding feasibility comment and a tooling proposal.
